Getting Started

There's several examples online of what you can do with BlackLab.

But at some point, you're going to want to run it yourself so you can experiment with your own data.

Before you can search your data using BlackLab, you'll need to:

  • Install BlackLab
  • Prepare your data
  • Index your data

Let's go over these one by one.

Install BlackLab

The web service, BlackLab Server, can be used from any programming language and offers a simple REST API (web service).

You will need a JVM version of 17 or higher to use the latest BlackLab versions. Also install Apache Tomcat 9. For example, on Ubuntu:

bash
sudo apt install openjdk-17-jdk tomcat9

Create an empty directory where you want to store your indexed corpora. Make sure it has the permissions you require. For example:

bash
# Create directory
sudo mkdir -p /data/blacklab-corpora

# Make sure you own it, so you can create corpora there
sudo chown -R $USER:$GROUP /data/blacklab-corpora

# Make sure it's world-readable so Tomcat can read it
chmod -R a+rx /data/blacklab-corpora

Now create a directory /etc/blacklab with a file named blacklab-server.yaml:

bash
# Create directory
sudo mkdir /etc/blacklab

# Create empty config file and take ownership of it
sudo touch /etc/blacklab/blacklab-server.yaml
sudo chown $USER:$GROUP /etc/blacklab/blacklab-server.yaml

# Make sure Tomcat can access the directory and file
sudo chmod -R a+rX /etc/blacklab

(NOTE: if you cannot create a directory under /etc/, see the TIP under configuration file for alternatives)

Now, edit the file /etc/blacklab/blacklab-server.yaml using a text editor:

yaml
---
configVersion: 2

# Where corpora can be found
# (list directories whose subdirectories are corpora, or directories containing a single corpus)
indexLocations:
- /data/blacklab-corpora

On the GitHub releases page, find the latest stable version (usually at the top) and download the attached file named blacklab-server-VERSION.war. Place this file in Tomcat's webapps directory. Tomcat should automatically recognize the file and initialize the application (usually, it will extract it to a subdirectory).

Now go to https://localhost:8080/blacklab-server/ (or substitute the hostname of the server you've installed it on if not running locally) and you should see an XML response from BlackLab.

(learn more about BlackLab Server)

Prepare your data

In order to search your data using BlackLab, it needs to be in a supported format, and it needs to be indexed by BlackLab.

Supported formats

BlackLab supports a number of input formats, but the most well-known are TEI (Text Encoding Initiative) and FoLiA (Format for Linguistic Annotation). These are both XML formats. If your data is not already in one of the supported formats, you can either add support via a configuration file or convert your data to a supported format. (see the next section if you want to use a test dataset instead of your own)

PLEASE NOTE

BlackLab needs tokenized data files as input. That means the word boundaries have already been determined and BlackLab can just index each word as it parses the input file.

It is possible to configure BlackLab to perform the necessary tokenizing and tagging; see Convert/Tag plugins.

Testing with the Brown corpus

If you can't use your own data yet, we've provided a tokenized, annotated TEI version of the Brown corpus for you to test with.

NOTE: to index this version of the Brown corpus, use the tei-p5-legacy input format.

The Brown Corpus

The Brown Corpus is a corpus compiled in the 1960s by Nelson Francis and Henry Kucera at Brown University. It is small by today's standard (500 documents, 1M words). It was converted to TEI format by Lou Burnard. It is available from archive.org under the CC-BY-NC 3.0 license, but we've created our own version which includes lemmata.
(Please note that we didn't check the lemmatization, and it probably contains errors - useful for testing purposes only!)

Index the data

There's a commandline tool to create a corpus called IndexTool. To use it, also download the blacklab-core-VERSION.jar from the GitHub releases page and extract it somewhere convenient.

From this directory, run the IndexTool without parameters for help information:

bash
java -cp "blacklab-VERSION.jar:lib" nl.inl.blacklab.tools.IndexTool

(NOTE: replace VERSION with the correct version. blacklab-VERSION.jar and the lib subdirectory containing required libraries should be located in the current directory; if not, prefix it with the correct directory)

(if you're on Windows, replace the classpath separator colon : with a semicolon ;)

We want to create a new corpus, so we need to supply a corpus (index) directory, input file(s) and an input format:

bash
java -cp "blacklab-VERSION.jar:lib" nl.inl.blacklab.tools.IndexTool create INDEX_DIR INPUT_FILES FORMAT

If you specify a directory as the INPUT_FILES, it will be scanned recursively. You can also specify a file glob (such as *.xml) or a single file. If you specify a .zip or .tar.gz file, BlackLab will automatically index its contents.

For example, if you have TEI-P5 data in /tmp/my-tei/ and want to create a corpus in /data/blacklab-corpora/my-corpus, run the following command:

bash
java -cp "blacklab-VERSION.jar" nl.inl.blacklab.tools.IndexTool create /data/blacklab-corpora/my-corpus /tmp/my-tei/ tei-p5

(NOTE: for the included Brown corpus data, use the tei-p5-legacy input format)

Your data is indexed and placed in a new BlackLab corpus in the /data/blacklab-corpora/my-corpus directory.

TIP: TEI variants

BlackLab now includes three TEI variants: tei-p5 (TEI-P5 using the pos attribute), tei-p5-legacy (same but using the nonstandard type attribute for part of speech) and tei-p4-legacy (TEI-P4 using the type attribute). Make sure you pick the right variant for you, or copy one of the tei-*.blf.yaml files (see here) and customize it to your needs.

See also:

Testing your corpus

BlackLab Server

If your corpus was created as a subdirectory of the indexLocation you configured above (/data/blacklab-corpora in the above example), BlackLab Server should pick it up automatically. You can test this by going to http://localhost:8080/blacklab-server/my-corpus. If it worked, you should see metadata about your corpus.

If you encounter problems, or you just prefer to test your corpus using a simple command line tool, you can try the QueryTool.

Corpus search application

BlackLab Frontend is our corpus search application. It has its own documentation site with instructions for installation and customization.

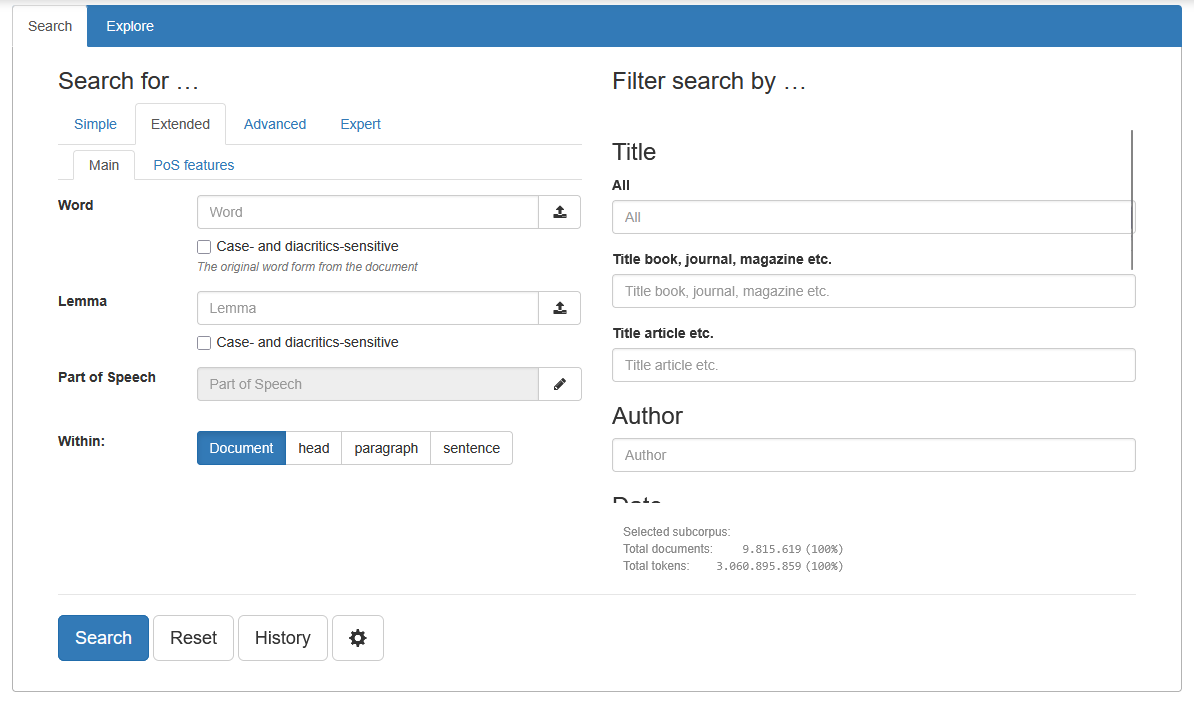

Screenshot of BlackLab Frontend

A simple script

If you want to access your corpus using a script, that is easy as well.

Below is an example in Python. It performs a CQL query and shows matches in KWIC (keyword in context) format:

python
import urllib.parse
import urllib.request
import json

def words(context):
	""" Convert word array to string. """
	return " ".join(context['word'])

def search(cqlQuery):
	""" Search and show hits. """
	url = "http://localhost:8080/blacklab-server/my-corpus/hits?patt=" + \
		urllib.parse.quote_plus(cqlQuery) + "&outputformat=json"
	f = urllib.request.urlopen(url)
	response = json.loads(f.read().decode('utf-8'))
	hits = response['hits']
	docs = response['docInfos']
	for hit in hits:
		# Show the document title and hit information
		doc = docs[hit['docPid']]
		print(words(hit['left']) + " [" + words(hit['match']) + "] " + \
			words(hit['right']) + " (" + doc['title'][0] + ")")

# "Main program"
search('[pos="a.*"] "fox"')

More examples can be found here.
